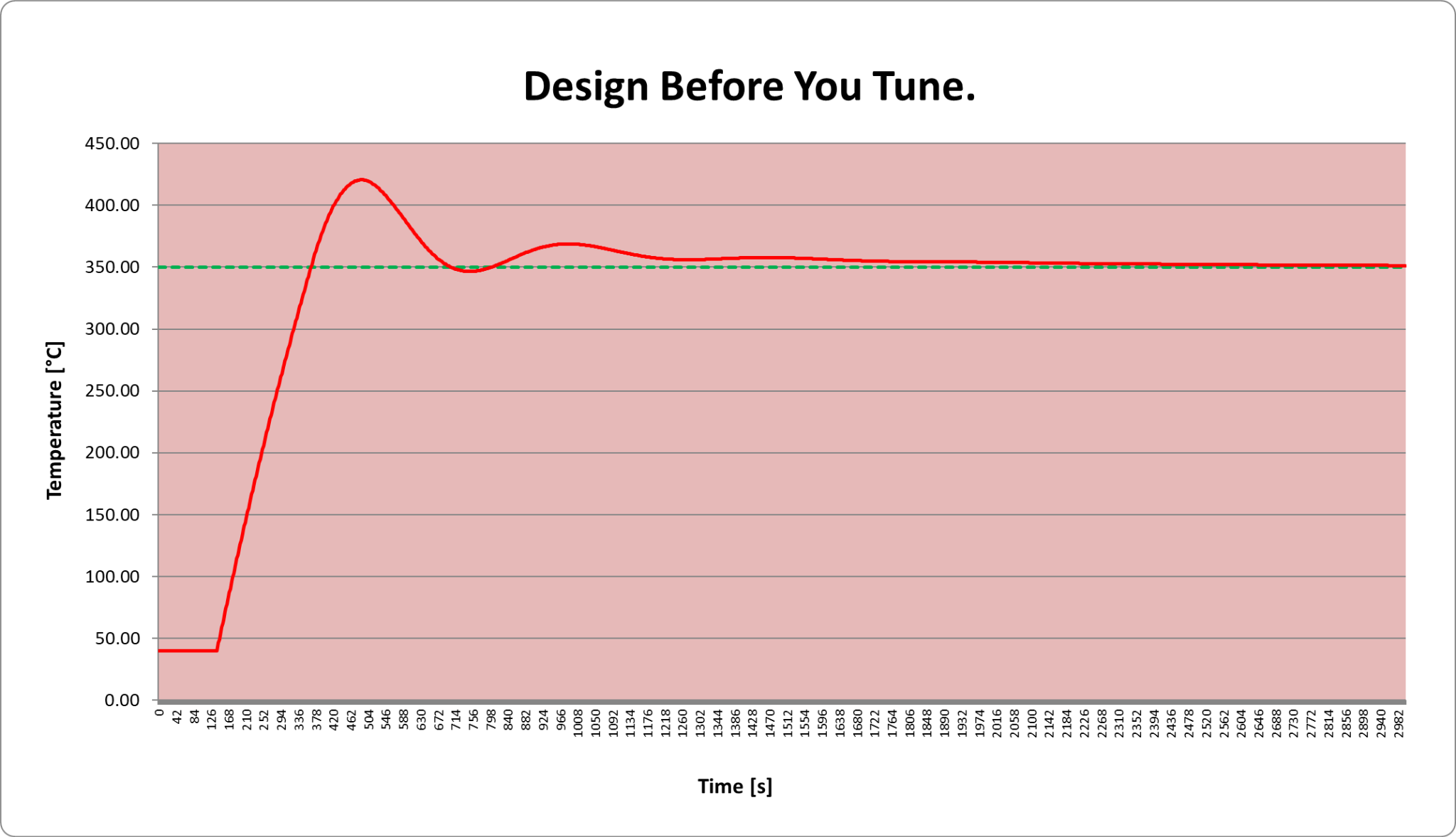

You tuned the PID.
It worked.
Then it failed again.
This is not always a tuning problem.
Sometimes the plant is already telling you what is wrong.
CHECK THE PROCESS CONSTRAINTS.
- Heater already at 95% but temperature still drops
- Valve fully open but flow is unstable
- Same PID works in winter, fails in summer
These are not just tuning mistakes. They are system-level constraint problems.
What should you investigate first?
Answer five practical questions to identify whether you should first check PID tuning, process delay, output limits, or field equipment.
About 60 seconds. No process data required.
Before you retune the PID, check what is really limiting the loop.
Answer five practical questions to identify what you should investigate first. About 60 seconds. No process data required.
Check these first
This quick check is a screening aid, not a final engineering diagnosis. Confirm the result with process trends, equipment condition, and your site's safety procedures.
Record the evidence, run numeric checks, and create a practical action plan.
Thermal PI Control Training Kit (Excel)
This is not a tuning tool.
This is how you stop tuning the wrong problem.
- Built for real constraints
- Simulate overshoot, saturation, and delay
- No coding required
